Description
About the machine
Features:
1.High quality and high speed of the machine, only need one person to operate, the labor cost is saved, and the production efficiency is improved.
2.Max 60 ℃ heat assistance, can completely avoid the bubbles and snow-state mass while laminating.
3.Metal design, using thick stable raw materials to make the machine more stable.
4.The machine have two laminating ways : Auto/foot control,Stepless speed regulation and reversing function.
5.High efficiency and high yield of lamination, whole film of 50m don't bevel. Film and paper tightness-degree system makes the cold lamination have good tension, reduces the risk of laminating fold.
6.Uncovering backing paper and finishing products automatically.
2.Max 60 ℃ heat assistance, can completely avoid the bubbles and snow-state mass while laminating.
3.Metal design, using thick stable raw materials to make the machine more stable.
4.The machine have two laminating ways : Auto/foot control,Stepless speed regulation and reversing function.
5.High efficiency and high yield of lamination, whole film of 50m don't bevel. Film and paper tightness-degree system makes the cold lamination have good tension, reduces the risk of laminating fold.
6.Uncovering backing paper and finishing products automatically.

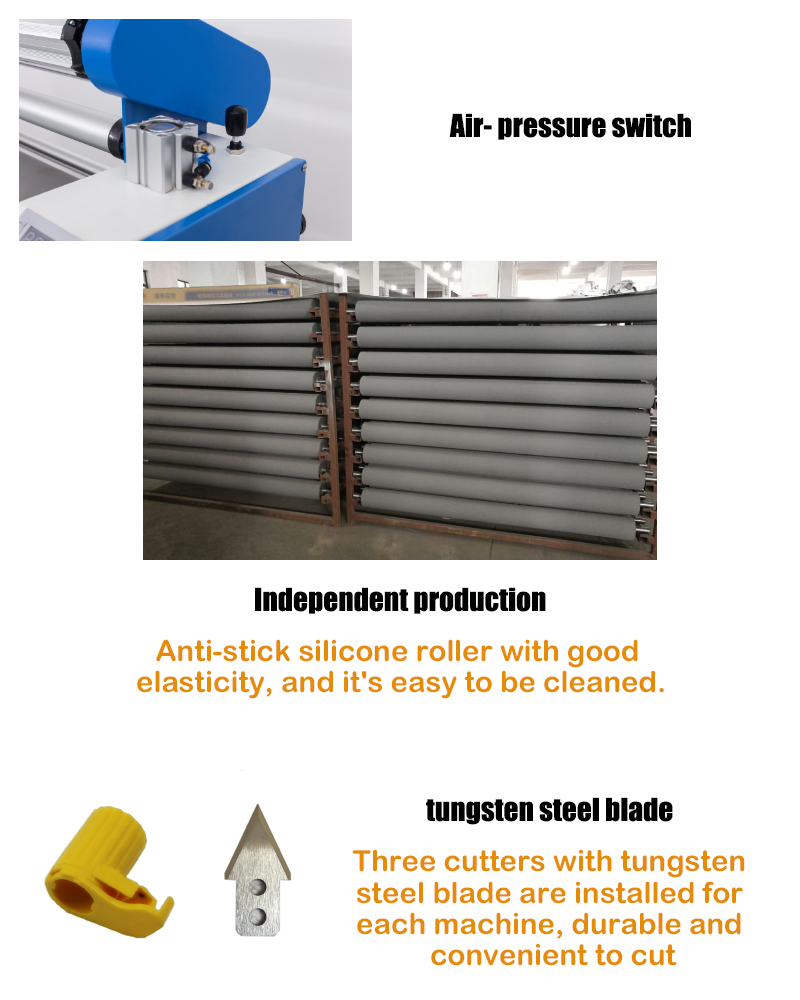

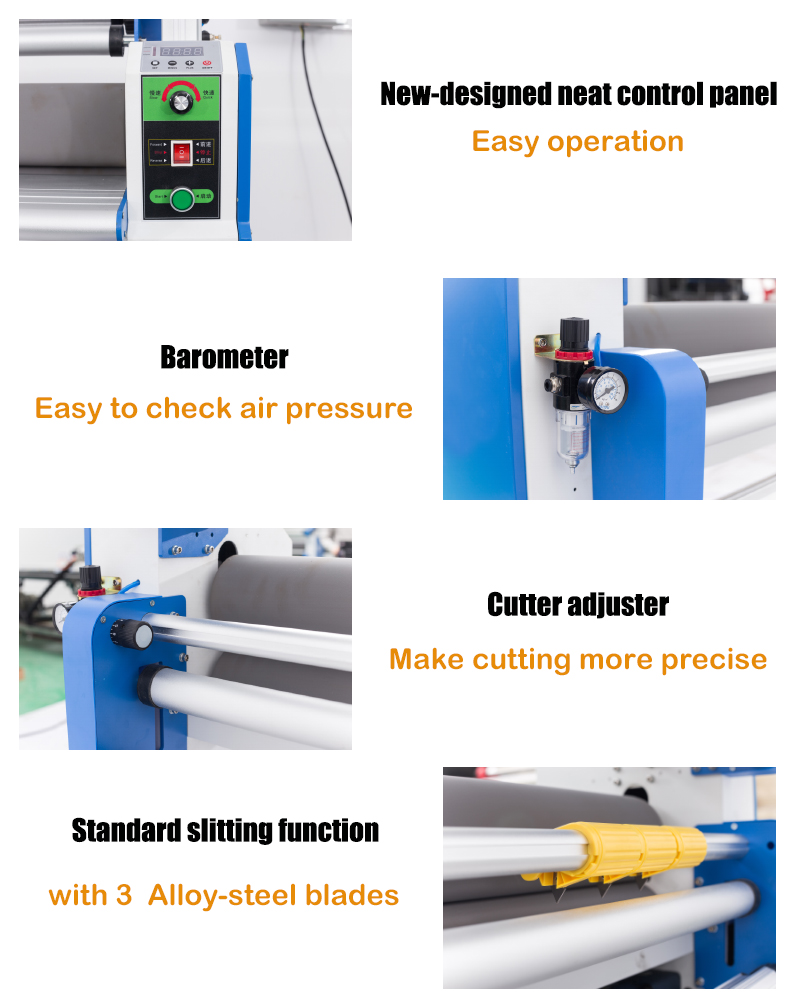

Details:
Machine Parameters
Parameters
| Model | GL-1680A |
| Voltage | 110V/220V |
| Power | 60W |
| Heating Power | 1500W |
| Frequency Respons | 50Hz-60Hz |
| Warm-up time | 0-10/Min |
| Laminating Width | ≤1580mm |
| Laminating Speed | 0-10m/Min |
| Laminating Thickness | 28mm |
| Maximum roll film OD | 200mm |
| Method of pressure adjustment | Pneumatic |
| Foot - Propelled switch | Yes |
| Diameter of roller | 130mm |
| Weight | 210Kg |
| Machine Size | 1980*570*1240mm |
| Packing Size | 2070*610*680mm |

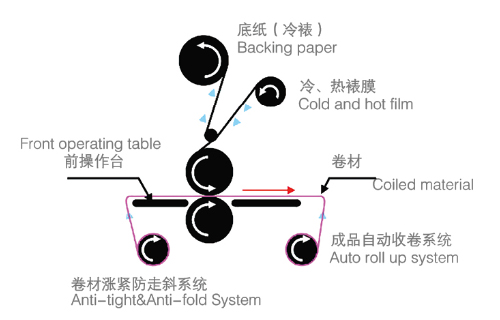

Working Principle
